One of the great things about triking is how nice it is to have everything right at hand as you roll along. With a SeatSide mount, you can have all sorts of things close at hand. The Catrike SeatSide Mount lets you carry bags, water bottles, cameras, all sorts of things, right by your side. Snacks, phones, lip balm, you name it, now you can keep it all within reach while riding. This version of the SeatSide Mount for Catrikes attaches to the seat frame. We make other versions that attach to the main frame tube. We recommend this version of the mount for people that simply want a good sturdy place to mount things beside the seat. If you want maximum versatility in where things are located or need quick on/off removability, check out the main frame mounted version.

FAQ

1. How does it work?

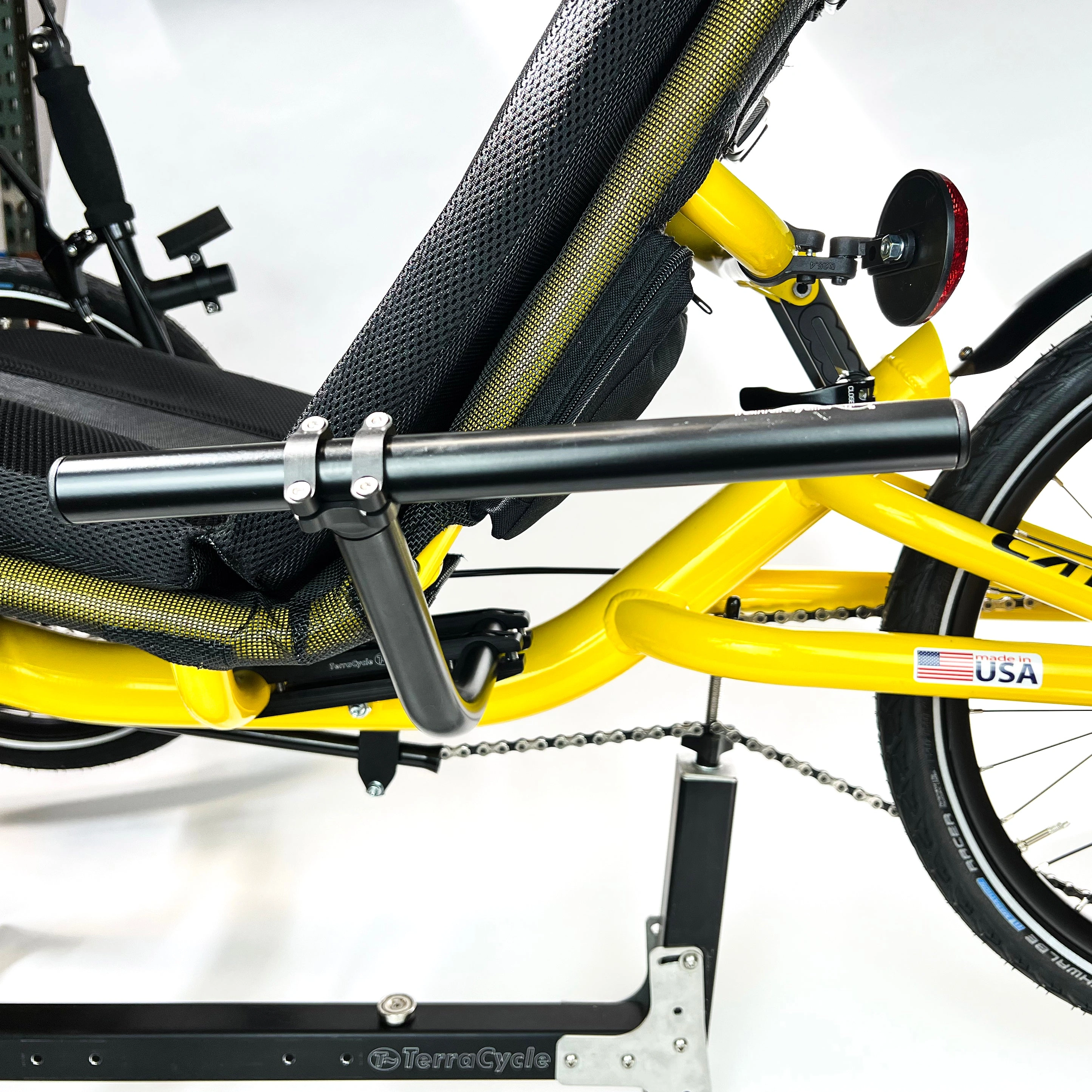

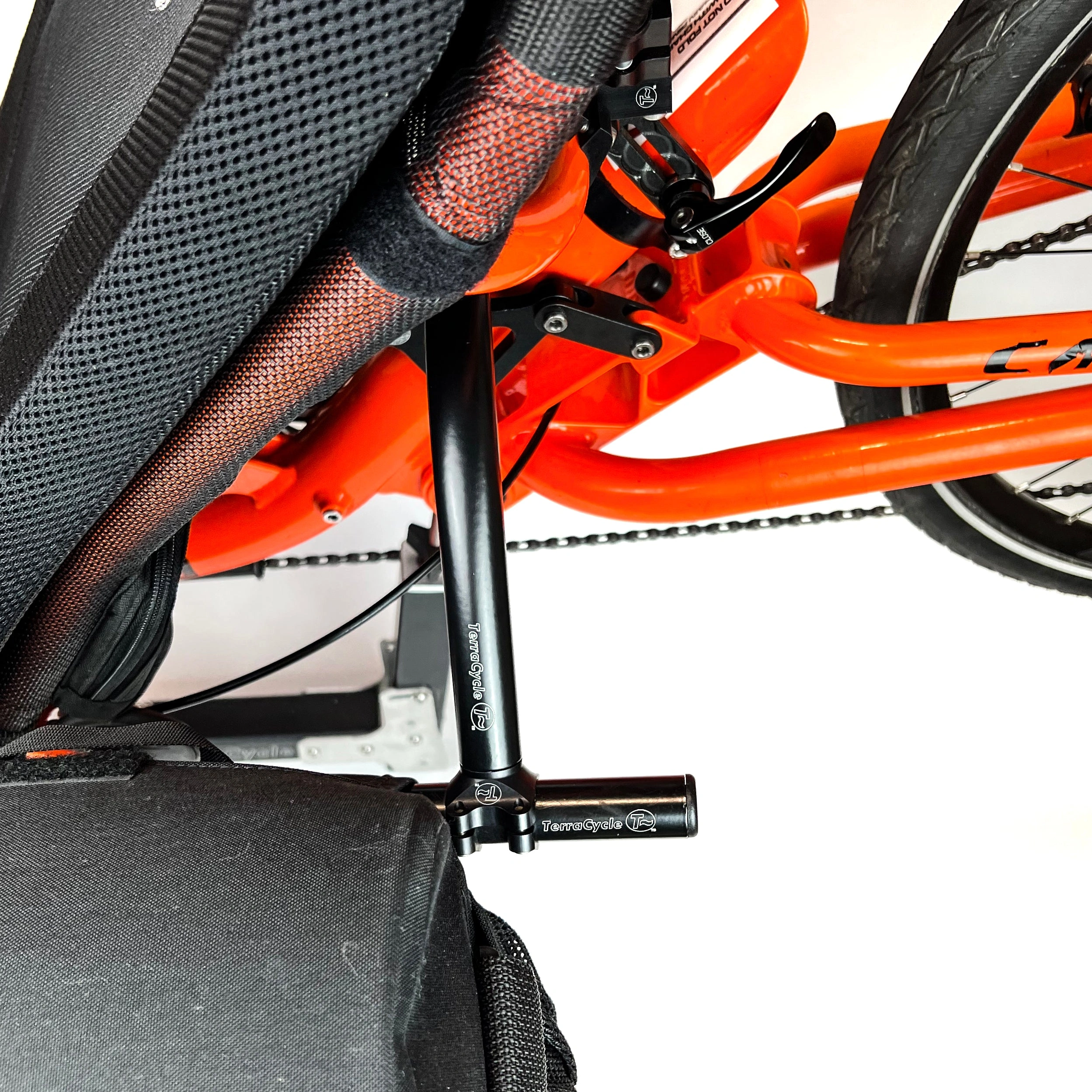

Specially machined clamps attach to the seat frame. For Catrikes that don't fold, they go on the straight part under the seat between the main tube and where it bends up. On Catrikes that fold, a different set of clamps go on back of the seat near where the seat angle adjusts. A support tube comes out sideways and over to where the accessory mounting tube needs to be. The end of the support tube has a T clamp that holds the horizontal accessory mounting tube beside the seat. The accessory mounting tube is long enough to hold whatever you'd like.

2. I've seen ICE trikes with something similar. Is this like that?

The stock ICE side mount is vaguely similar, but it has a smaller accessory mounting area than the ones we make and is only adjustable left/right. On our mounts, everything is clamped, not welded, so you can adjust things up/down, left/right, and forward/back. The space provided to mount accessories is about 3 times as long. If you want to really customize it, you can shorten any of the tubes, or even substitute another of a different size. We make a version for ICE trikes, too, of course, in which case the mounts would be very similar. On the ICE trikes, the tube that you attach to is behind the seat, rather than under the seat, so how you get from there out to the side of the seat is a little different.

3. Which side does it go on?

Either, or both, it's up to you. If you have a folding Catrike, we make a double mount that does both sides with one mount and one set of seatback clamps. If you have a non folding Catrike, you have to use two separate single sided mounts to get one on each side.

4. Will this work with any bag?

Yes, the tube where the accessories mount is 7/8in (22.2mm) diameter, so pretty much anything designed to mount to a bike or to handlebars can attach there. If you ever need shims for your bag, let us know.

5. What can you put on it?

Anything that you can attach to a standard 7/8in (22.2mm, standard handlebar size) tube. Handlebar bags, water bottles, phones, things like that. The supplied accessory mounting tube is 11 inches (28cm) long, so you have lots of room. We have longer tubes if you really want to go crazy.

6. How much weight can it hold?

A lot, but obviously it has it's limits. We're saying 10lbs (4.5Kg) to be on the safe side. We do recommend that if you want to carry living things (like pets) that you do so carefully.
